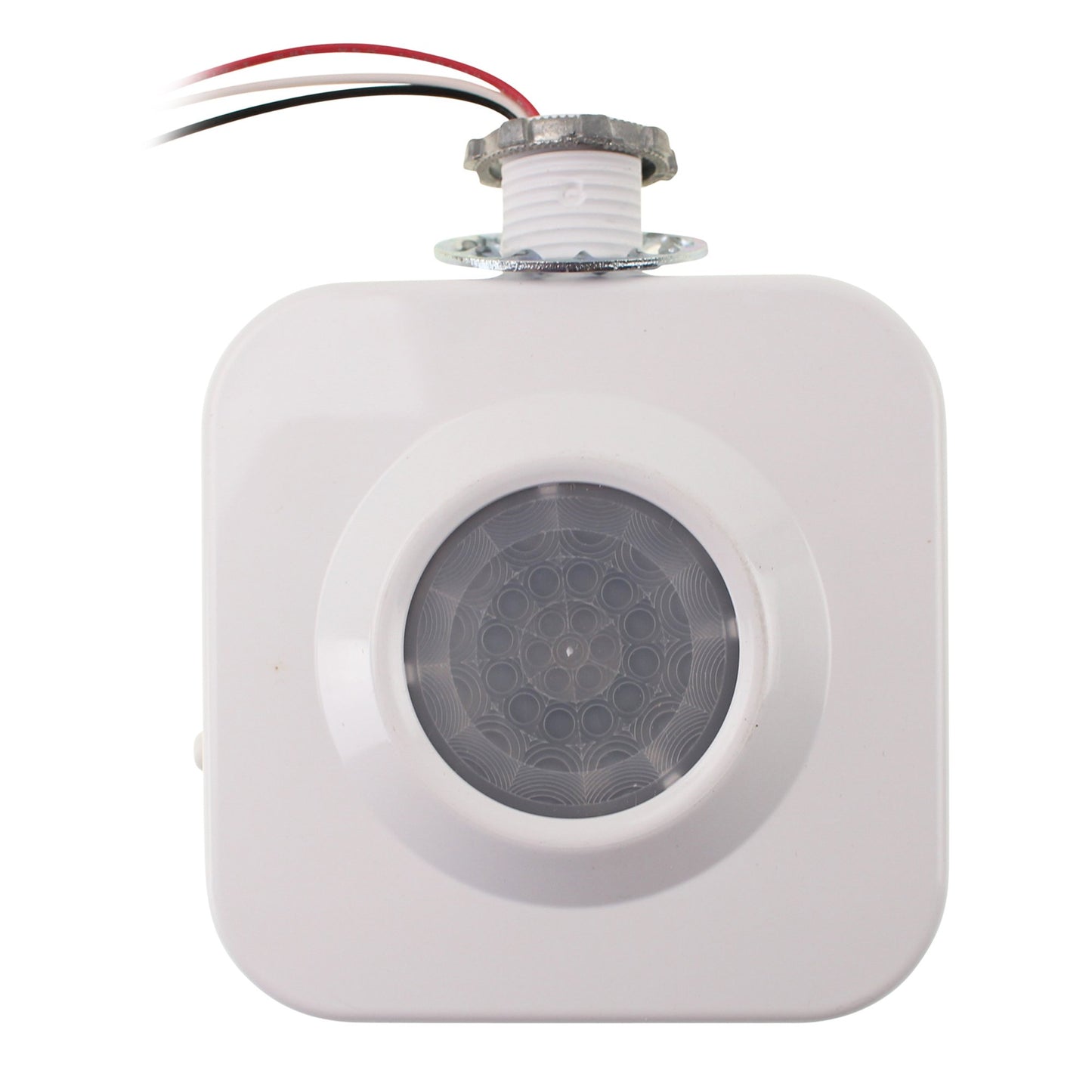

Sensor Switch CMB-6 High-Bay Occupancy Sensor, Fixture Mount, 360� PIR, 12-24V
Sensor Switch CMB-6 High-Bay Occupancy Sensor, Fixture Mount, 360� PIR, 12-24V
Sensor Switch, Low Voltage High Mounting Box PIR Sensor On/Off Daylight Photocell The CMRB 6 High Bay 360 sensor provides Passive Infrared (PIR) occupancy detection over a 1520 ft (4.576.10 m) radial coverage pattern that overlaps the areas lit by a typical high bay fixture. Designed for mounting heights of up to 45 ft (13.72 m), this line voltage sensor switches loads directly without the need for a power pack. The CMRB 6 sensor mounts directly to the end of a lighting fixture through an extended 1/2 inch chase nipple, and is ideal for individual on/off control of T5/T8 fluorescent lighting. HID bilevel fixtures can also be controlled when the Startto High (SH) option is added to the CMRB 6. For multiple fixture control, multiple low voltage CMB 6, CMB 50, and/or HMB 10 Series High Bay sensors with power packs are recommended. For lower mounting height applications, CMRB 9 or CMRB 10 Series sensors are recommended. TYPICAL APPLICATIONSIndividual Control of Fluorescents T5 or T8 Fluorescent HID BiLevel (w/ SH option) nbsp; FEATURES PIR Occupancy Detection Up to 45 Foot Mounting SelfContained Relay, no Power Pack needed No Minimum Load RequirementsPushButton Programmable Time Delay: 30 sec. to 20 minutes Green LED Activity Indicator 100 Hr. Lamp Burnin Timer Mode
